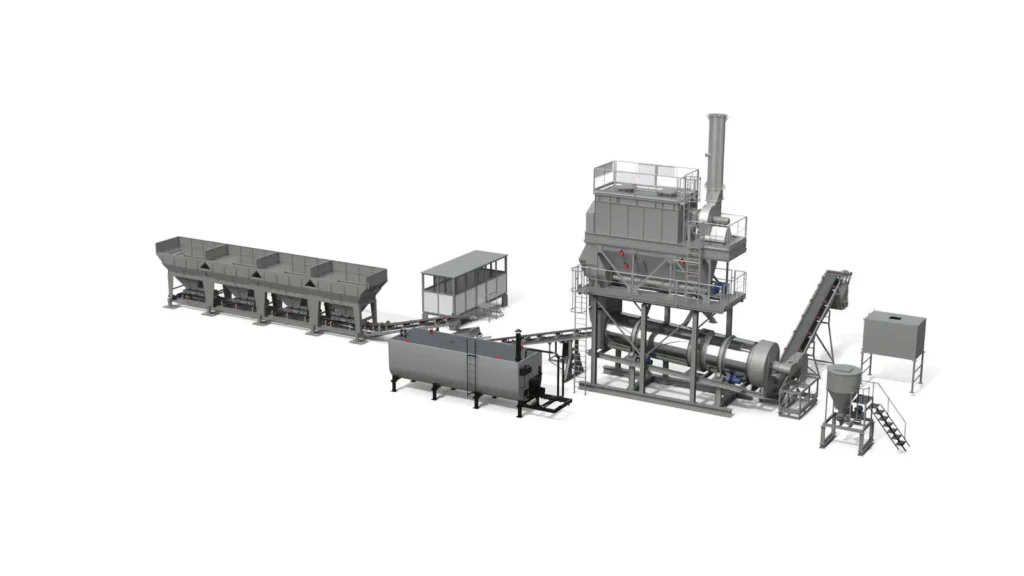

Drum Mix Plant
National Road Equipment is a trusted manufacturer of asphalt drum mix plants. Our hot mix plant units are engineered to deliver stability and durability, ensuring they can handle large-scale production demands with ease. The National Road Equipment® drum mix plants have been a flagship product in the market, even before the introduction of our batch mix plants, thanks to their robust build, exceptional output performance, low maintenance, and high efficiency. These features have provided significant benefits to our customers, earning their trust and continued support for our machines due to our commitment to top-quality consistency.
As a skilled drum mix plant manufacturer, we have meticulously designed the flight pattern of the drum through extensive research and development. This innovation allows our customers to achieve optimal performance and efficiency in their production processes, delivering outstanding results every time.
Technical Specification
| MODEL | NRE – 45 | NRE – 50 | NRE – 60 |
| PLANT CAPACITY (TPH)* | 45- 60 | 60 – 90 | 90 – 120 |
| DIMENSION OF THERMO DRUM UNIT (LXWXH) (m) | 10.60 X 2.50 X 2.70 | 11.80 X 2.70 X 2.80 | 13.90 X 2.90 X 3.10 |
| BURNER SIZE ( l/h) | 200 – 250 | 300 – 350 | 550 – 600 |
| BURNER TYPE | Hi – Lo Type Pressure Jet | Hi – Lo Type Pressure Jet | Hi – Lo Type Pressure Jet |
| FUEL TYPE | HSD, LDO | HSD, LDO | HSD, LDO |
| EXHAUSTER UNIT (CFM) | 10500 | 14500 | 15500 |
| DUST COLLECTOR | 15 Cones | 20 Cones | 24 Cones |
| DRUM DIAMETER (m) | 01.20 | 01.50 | 01.80 |
| FEEDER CAPACITY ( kg) | 32000 | 44000 | 44000 |
| BITUMEN TANK (CAPACITY IN LITER ) | 15000 / 20000 / 30000 | ||
| FILLER CAPACITY (kg) | 1000 | ||
| POWER REQUIRED TOTAL (KW) | 79 | 94.38 | 115.76 |
| TOTAL AREA REQUIRED FOR INSTALLATION | 35 X 35 m | 38 X 38 m | 45 X 45 m |
| GEAR DETAIL | |||
| AUXILIARY CONVEYOR | Helical Type | ||
| GATHERING CONVEYOR | Helical Type | ||
| SLINGER CONVEYOR | Helical Type | ||
| LOADOUT CONVEYOR | Helical Type | ||
| SCREW CONVEYOR | NU Worm Type | ||
| DRUM DRIVE UNIT | SNU Worm Type | ||
| BITUMEN PUMP | Gear Type | ||
| * 3% moisture content in cold aggregates, 38OC atmospheric temprature, aggregated density of 1.6 tons /m3, mean sea level, | |||
